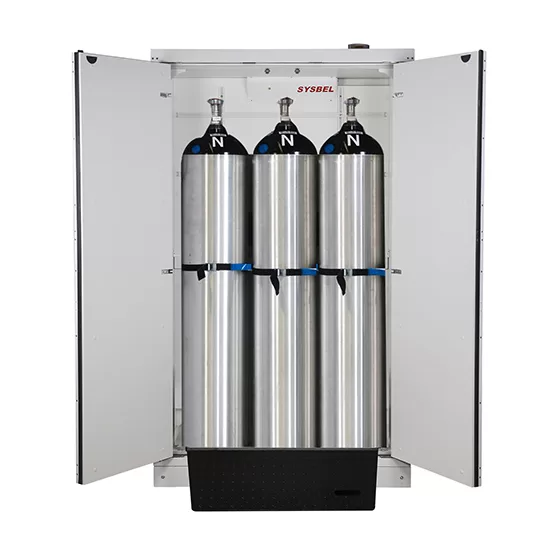

The EN fire-resistant gas cylinder storage cabinet is designed for the safe storage of compressed gas cylinders in laboratories, chemical plants, and industrial environments.

The cabinet has passed EN 14470-2 certification and provides 90 minutes of fire resistance, effectively preventing fire spread and reducing risks caused by gas cylinder explosion in the event of fire. A complete and uniform ventilation system from bottom to top enables rapid discharge of leaked gases and helps prevent gas accumulation inside the cabinet.

Single, double, and three-cylinder models are available to meet different storage requirements. The cabinet is equipped with a standard steel anti-slip ramp to ensure safe entry and exit of gas cylinders. Optional compliant explosion-proof devices can be selected for gas leakage monitoring, automatic alarm, and automatic exhaust.

The cabinet complies with EN 14470-2, ISO 3864, NFPA30, and OSHA regulations.

Part number:
SE790103
Brand:
Share:
  • EN 14470-2 certified 90-minute fire-resistant structure.
  • Available in single, double, and three-cylinder models.
  • Uniform bottom-to-top ventilation system.
  • Upper and lower air vents to avoid gas accumulation.
  • Standard steel anti-slip ramp.
  • Internal gas cylinder securing system.
  • Independent mechanical lock.
  • Multi-language reflective warning labels.
  • Optional explosion-proof gas detector and sound-light alarm.
  • Compliant with EN 14470-2, ISO 3864, NFPA30, and OSHA.
Model SE790103 Internal Dimensions 179 × 109 × 43 (H×W×D/cm)
Fire resistance 90 min Packing dimension (H×W×D/cm) 213 × 127 × 74
Door Type Double Door / manual Requirements for 10 times the extraction air volume for air exchange (m³/h)  8
Color Grey Requirements for 120 times the extraction air volume for air exchange (m³/h) 93
Certification EN 14470-2 Outlet connection diameter (mm) 100
Ext Dimension (H×W×D/cm) 203 × 120 × 62.5 Number of perforations available 56



  • Chemical & petrochemical plants
  • Laboratories & research institutes
  • Pharmaceutical manufacturing
  • Electronics & semiconductor factories
  • Industrial gas storage roomsUniversities & testing centers
