Claw Intermediate

The CLAW LINE LABEL is used to identify the CLAW LINE system with all relevant user information. It is mandatory to install one label per rope system.

Made of stainless steel, the extremely durable, corrosion-resistant CLAW LINE CABLE 8 MM CUSTOMIZED connects the upper and lower anchor points of the CLAW LINE vertical arrester system. The upper end is pressed onto a stainless steel thimble with a copper press sleeve.

The CLAW LINE TENSION is a stainless steel tensioning device for fixed-installation vertical CLAW LINE arrester systems with ropes Ø 8mm. A single tensioning element for all available system variants makes component planning of any CLAW LINE system extremely simple. The required rope tension of 80 kg is built up by turning the turnbuckle. The laser marking indicates at all times whether the tension in the rope meets the requirements.

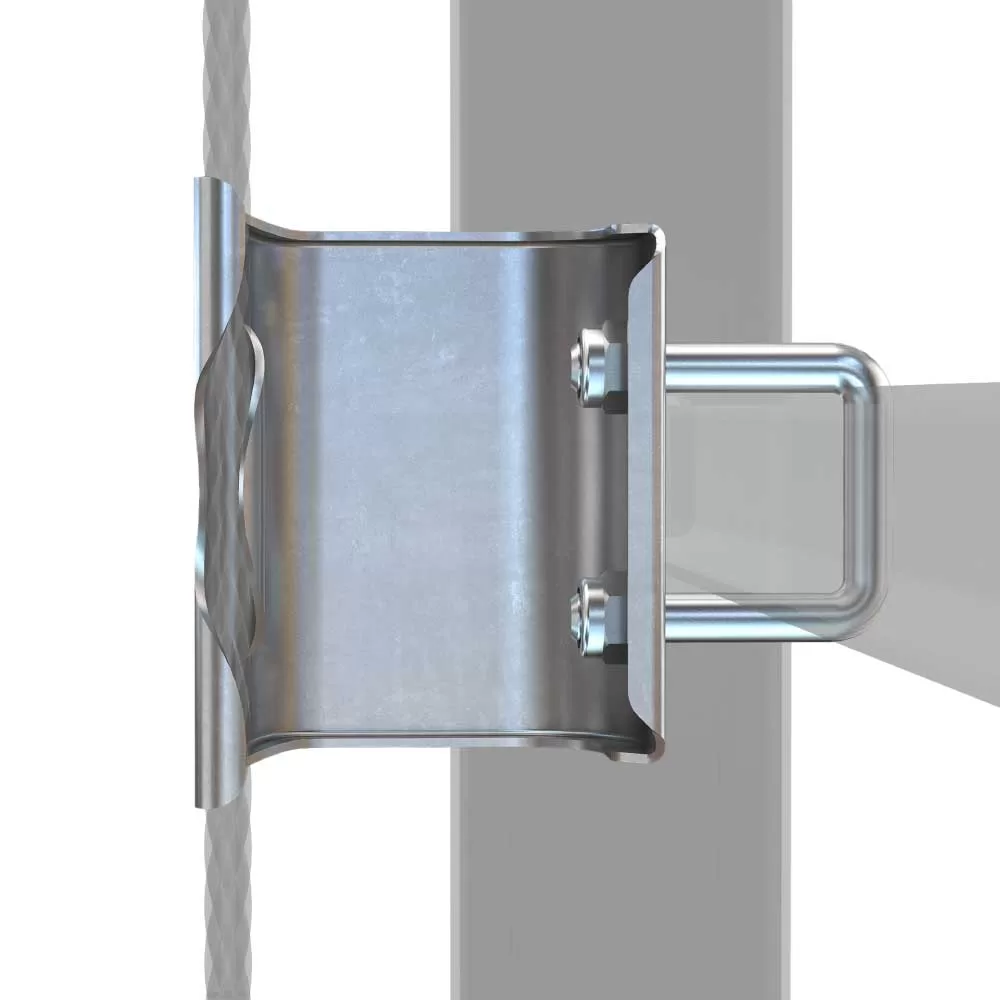

The CLAW INTERMEDIATE SET 7 is a traversable intermediate holder for 10 mm ropes and suitable for round rungs with a diameter of 20-31 mm.

The CLAW INTERMEDIATE SET 3 is a traversable intermediate holder for 8 mm ropes and suitable for round rungs with a diameter of 20-31 mm. The CLAW LINE vertical steel rope fall arrester system combines the highest level of climbing safety and maximum attachment flexibility.

The CLAW LINE AP STEEL LADDER for ropes larger than 9 mm is suitable for the "ladder attachment" system variant, in which the climbing protection system can be attached directly to the ladder used (steel, aluminium). Thanks to its high force absorption capacity via two rungs, the stainless steel anchor point ensures that the force applied in an emergency is fully supported by the system.

The CLAW LINE AP STEEL LADDER for ropes larger than 9 mm is suitable for the system variant "ladder attachment", in which the arrester system can be attached directly to the ladder used (steel, aluminium). The stainless steel anchor point, with its high force absorption capacity via two rungs, ensures that the force applied in an emergency is fully borne by the system. CLAW LINE AP STEEL LADDER can be used for all types of rungs and rung spacing.

The CLAW LINE BOTTOM ANCHOR POINT for the system variant "ladder attachment", where the arrester system can be attached directly to the aluminium ladder used. The stainless steel anchor point is mounted on the lower two rungs and is used to hold the tensioning device. The lower ladder anchor point can be combined with other upper CLAW LINE anchor variants directly on the structure or other anchor points.

The CLAW LINE TOP ANCHOR POINT for the "ladder attachment" system variant, in which the arrester system can be attached directly to the aluminium ladder used. The stainless steel anchor point ensures that the force applied in an emergency is fully borne by the system thanks to its high force absorption capacity with the aid of a spar and rung reinforcement over 3 rungs.

The CLAW LINE TOP POST STEEL LADDER is made of stainless steel and is used for climbing over (steel) ladders. At the end there is an anchor point according to DIN EN 795 and is thus also suitable for attaching the PSAgA. The element is installed by simply hooking it into the middle rung, which is equipped with an alligator clip and the angle for easier installation.
