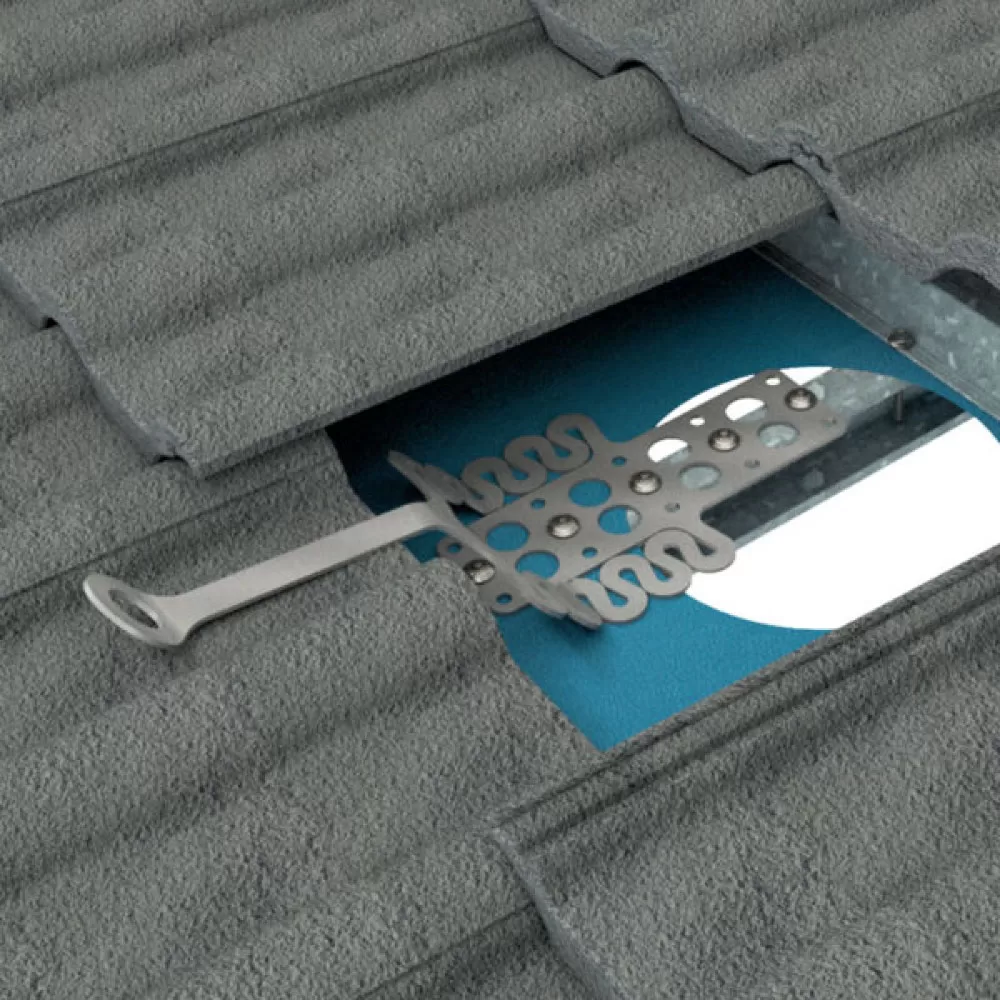

Tilelink – Rafter Mounted Roof Anchor For Tile Roof For Mounting Onto Steel Rafter

An anchor point designed for use on steel rafters with tiled roof, will arrest from any direction. Enquire about our TileLink steel rafter option.

Part number:
TILEL001_SFM+RIVETS
Brand:
SafetyLink
Category
Roof Anchors
Share:
Request a quote
  • Designed for use on steel rafters under tiles, no need to cut sarking, eliminating waterproofing issues.
  • Install with three (3) alternate fixing rows: use 5 x 8mm Bulbtite Rivets (Drill Size 7.8-8.2mm, 27.7mm length, 1.0-9.5mm grip).
  • Low profile reflective design is a plus for any commercial or residential enterprise wanting to maintain an aesthetically pleasing façade.
  • Discreet design, with only the eyelet protruding from the roof.
  • Multi-directional fall protection.
  • Single person roof anchor.
  • Rated at 15kN.
Product Code Description Weight Rated Material
TILEL001_SFM Rafter Mounted Anchor SFM 0.630 kg 15kN 316 Stainless Stee
TILEL001+Rivets Rafter Mounted Anchor + 5 Rivets 0.669 kg 15kN 316 Stainless Stee
Standards: Complies with: AS/NZS 1891.4 and EN
795:2012
