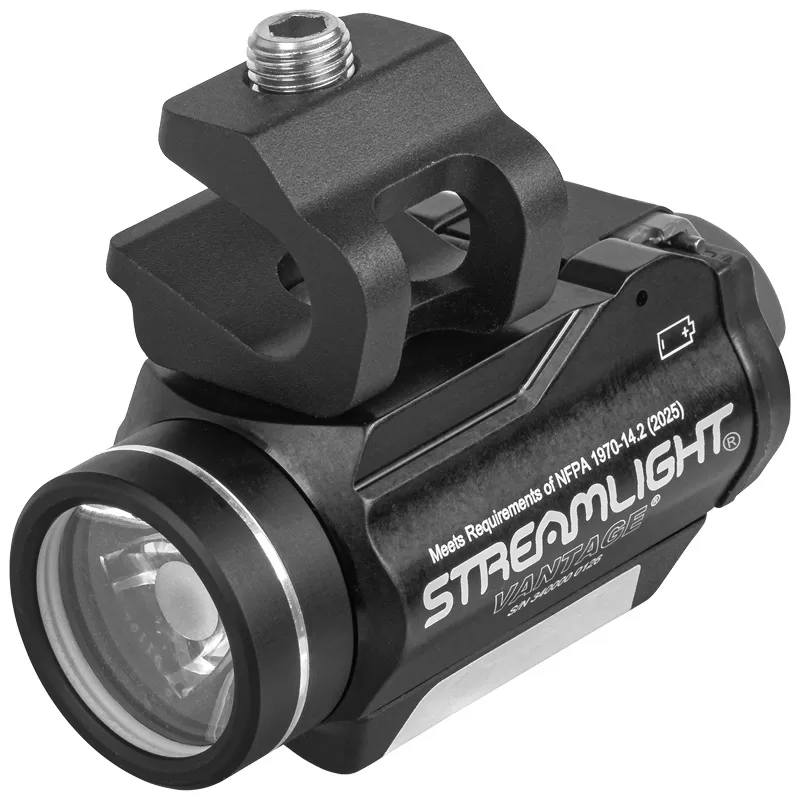

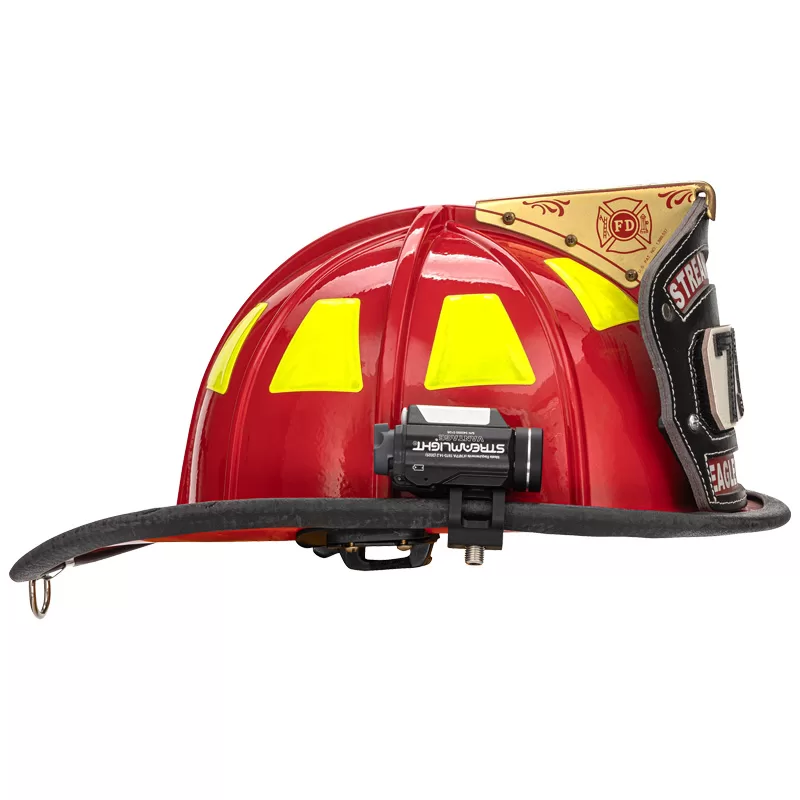

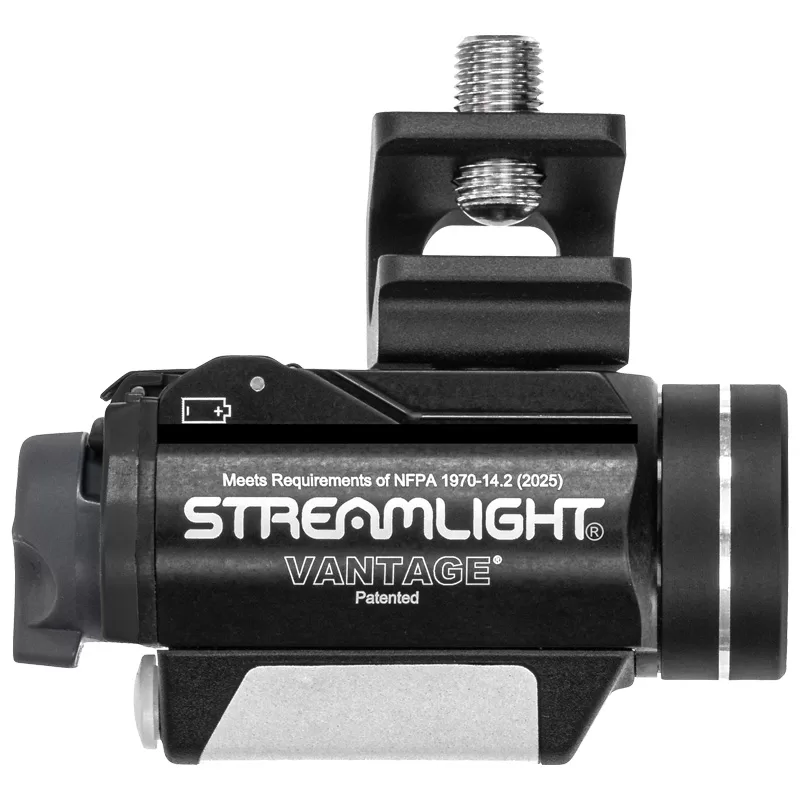

Compact and low-profile, the Vantage® helmet-mounted light is purpose-built for firefighting and industrial applications. It is engineered to securely attach above or below the brim of full-brim fire and industrial helmets. Its intuitive mounting clamp enables fast, tool-free battery changes without removing the light when installed under the brim. An ambidextrous, dual-direction tail switch ensures reliable activation from either side of the helmet—even with bulky fire gloves. Powered by advanced LED technology, the Vantage® delivers a focused, high-candela beam optimized to cut through smoke and haze without washing out the user’s vision, enhancing situational awareness in low-visibility environments. An integrated ultra-bright blue safety taillight improves personnel visibility in heavy smoke, and a sealed, water-resistant construction ensures dependable performance in demanding, wet, and unpredictable work environments.

Part number:
69140
Brand:
Streamlight
Category
Handheld Flash Light
Share:
Request a quote

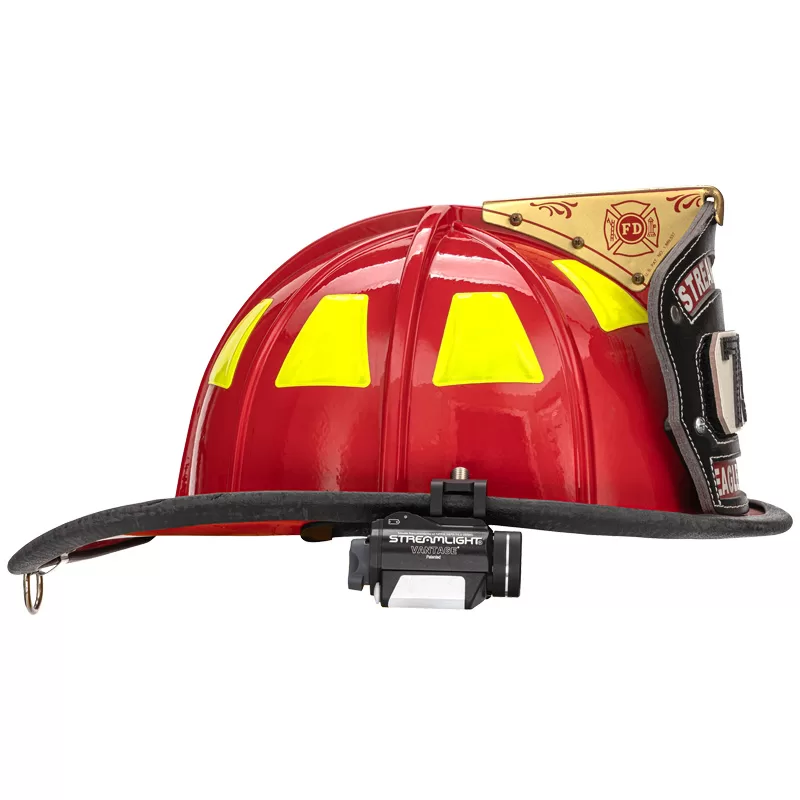

  • Batteries can be changed without removing from a helmet when mounted under the brim.
  • Heat exposure tested to 500°F for 5 minutes.
  • Beam optimized to penetrate smoke & haze.
  • Glove friendly, ambidextrous dual direction tail switch.
  • Swivel clamp to optimize beam location.
  • IPX7-rated design; waterproof to 1 meter for 30 minutes.

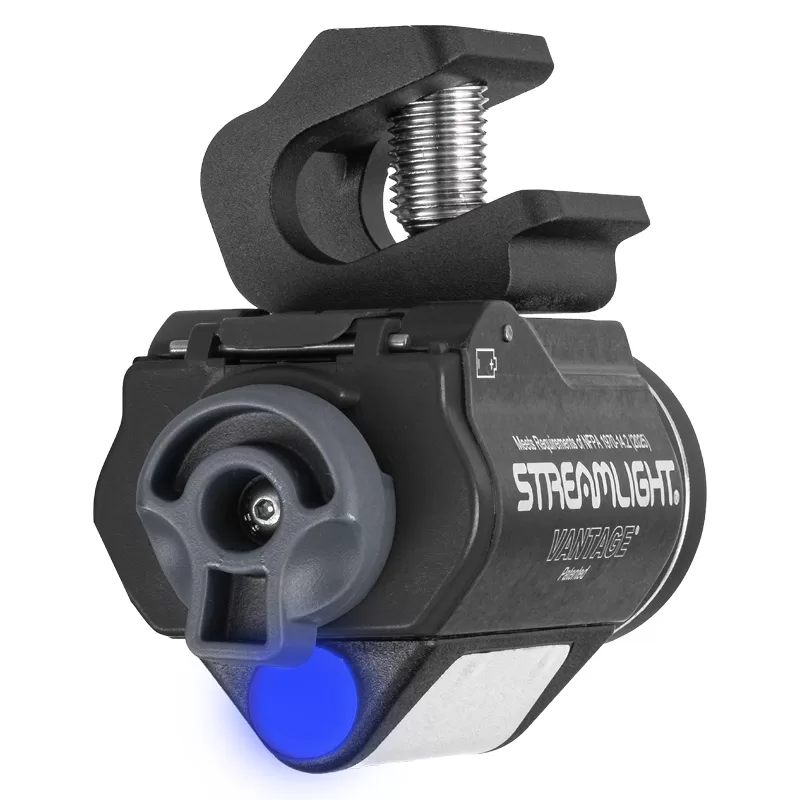

  • Ultra-bright blue safety taillight LED visible in heavy smoke.
  • Serialized for positive identification.
Case Material:
  • 6000 series machined aircraft aluminum with black anodized finish.
  • High-impact, chemical-resistant engineering polymer LED housing.
Dimensions:
  • Length: 3.08 in (7.82 cm)
  • Width: 1.43 in (3.63 cm)
  • Height with clamp: 2.67 in (6.78 cm)
Weight: 5.08 oz (144g) with batteries (included in purchase)
Lens: High temperature, shock-mounted, impact-resistant BOROFLOAT® glass.
Light Source:
  • White LED, impervious to shock with a 50,000-hour lifetime.
  • 470 nm ultra-bright blue safety taillight LED with a 100,000-hour lifetime.
Light Output:
  • 225 lumens measured system output; 22,000 candela peak beam intensity; 297m beam distance.
  • Focused, high candela beam optimized to penetrate smoke & haze. Optimized electronics provide regulated intensity.
On/Off: Dual direction, easy access on/off switch located on rear of light.
Run Time: 5 continuous hours to 10% of initial lumen output.
Battery: Two (2) 3-volt CR123A lithium batteries with a storage life of 10 years. WARNING – EXPLOSION RISK, BURN AND FIRE HAZARD. Do not use SL-B9® batteries in firefighting apparatus or fire situations. Do not expose SL-B9® battery to temperatures greater than 140°F (60°C).
Warranty: Streamlight’s Limited Lifetime Warranty
Approvals:
  • Meets applicable United Kingdom and European Community Directives.
  • Flashlight meets 500°F requirements of NFPA 1970 – 14.2 (2025).
