LW 200 E MC Breathing Apparatus Compressor

This new compressor series is the perfect solution for dive centers, ships, boats and places with limited space and convince with a brand new and powerful compressor block. An innovative characteristic based on the new Motion Link design allows a very slim design. Customers can choose between three different models and delivery rates of 150 l/min, 200 l/min or 250 l/min. These compressors are designed for a long lifetime and continuously operations, the ideal machine for smaller stationary applications. Long maintenance intervals guarantee extremely low maintenance costs. With a small and handy frame these compressors are highly predestined for mobile breathing air applications.

Mã sản phẩm:
LW 200 E MC
Thương hiệu:
LW
Danh mục:
Máy Nén Khí Thở
Share:
Yêu cầu báo giá
  • Electro motor (Standard: 400V, 3 phase, 50Hz)
  • Power cable and plug
  • Lightweight steel frame
  • Ergonomic nopped handles
  • Start / Stop switch c/w phase selector function
  • Manual condensate drain
  • 1x Filling hose c/w cross design valve and filling pressure gauge
  • Pressure maintaining and non return valve
  • All pistons c/w steel piston rings
  • Oil- / Water separators after 2nd and 3rd stage
  • Safety valves after each stage
  • 3 x concentric suction/pressure valves
  • Filling pressure to your choice (200 or 300 bar)
  • Connections to your choice (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
  • Breathing air purification in accordance to EN 12021
Type: Air cooled piston compressor
Capacity [l/min] / [Nm³/h] / [cfm]: 200 / 12 / 7.1
Max. Pressure [bar]: 350
RPM [1/min]: 1425
No of cylinders / No of stages: 3 / 3
Prime mover type: E-Motor / 400V / 3 Phase / 50-60 Hz
Drive power [kW]: 4.0
Cooling air req. [m³/h]: 1200
Lubrication type: Splash oil
Oil capacity [l]: approx. 0.8
Operating temperature [°C]: +5°C to +45°C
Filter capacity [m³ at +20°C]: 500 (at +20°C / approx. 41 h)
Dimensions W x D x H [mm]: 1060 x 500 x 580
Weight [kg]: 115
Noise level (measured at 1 m) [dB(A)]: 86

Sản phẩm liên quan

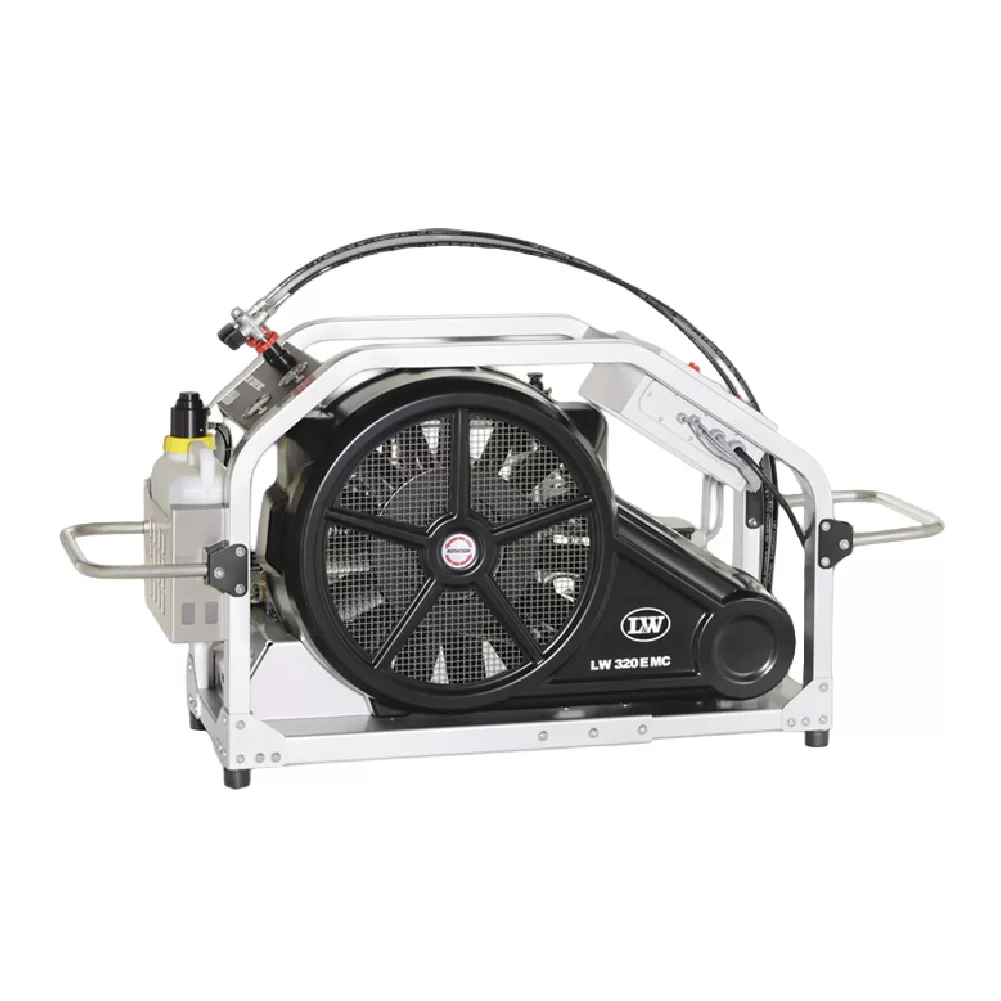

LW 320 E MC Breathing Apparatus Compressor
LW 320 E MC Breathing Apparatus Compressor
The new MC Series from LW 320 has been created for dive centers, ships, boats and places with limited space. These are suitable for continuous operation and guarantee low maintenance costs due to long service intervals. Depending on the motor size they are fully equipped with either direct- or star /delta start systems. A super lightweight aluminum frame enables mobile applications, combined with very high filling capacity. The robust and powerful compressor block also allows being used at fully automatic stationary plants.

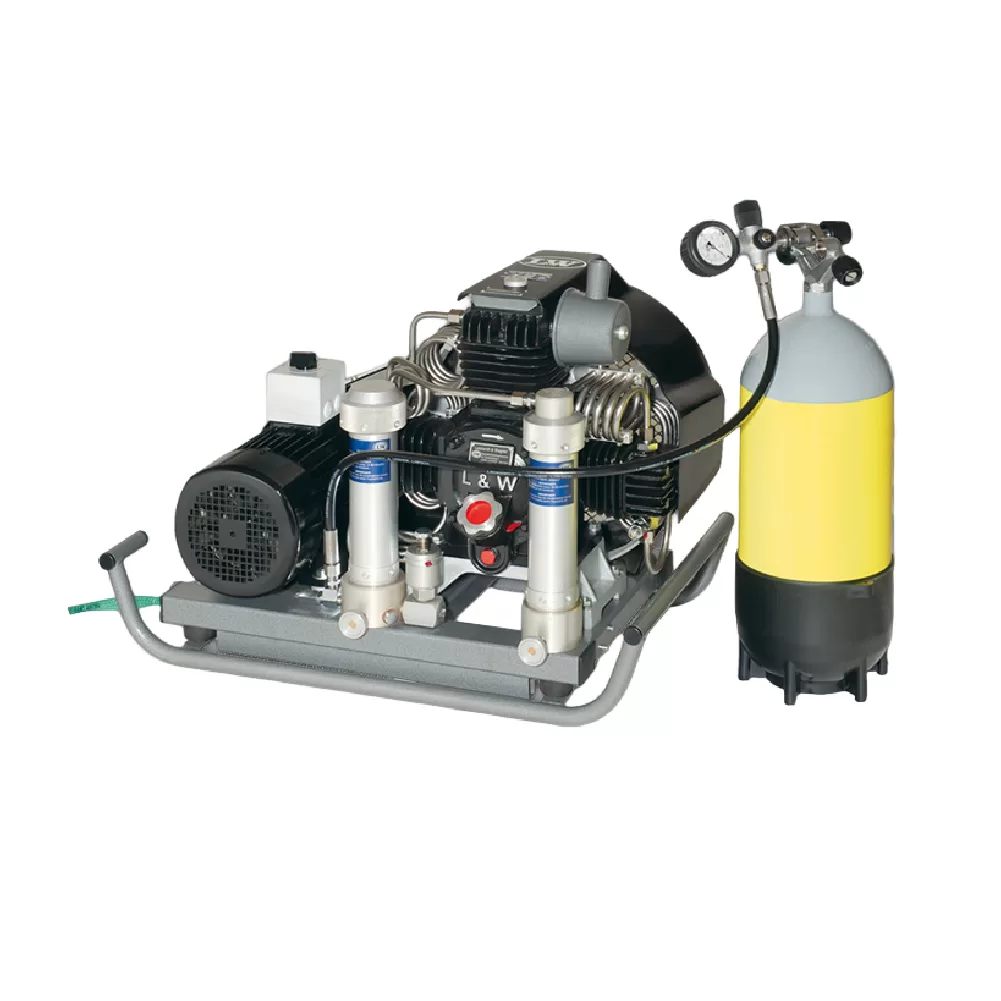

LW 160 E Breathing Apparatus Compressor
LW 160 E Breathing Apparatus Compressor
The user-friendly LW 160 E with electric drive is ideal for mobile applications or occasional filling operations. It comes wired with power cable, plug and phase selector. The model differs in E and E 1 (E - 3 Phase version / E1 - 1 Phase version)

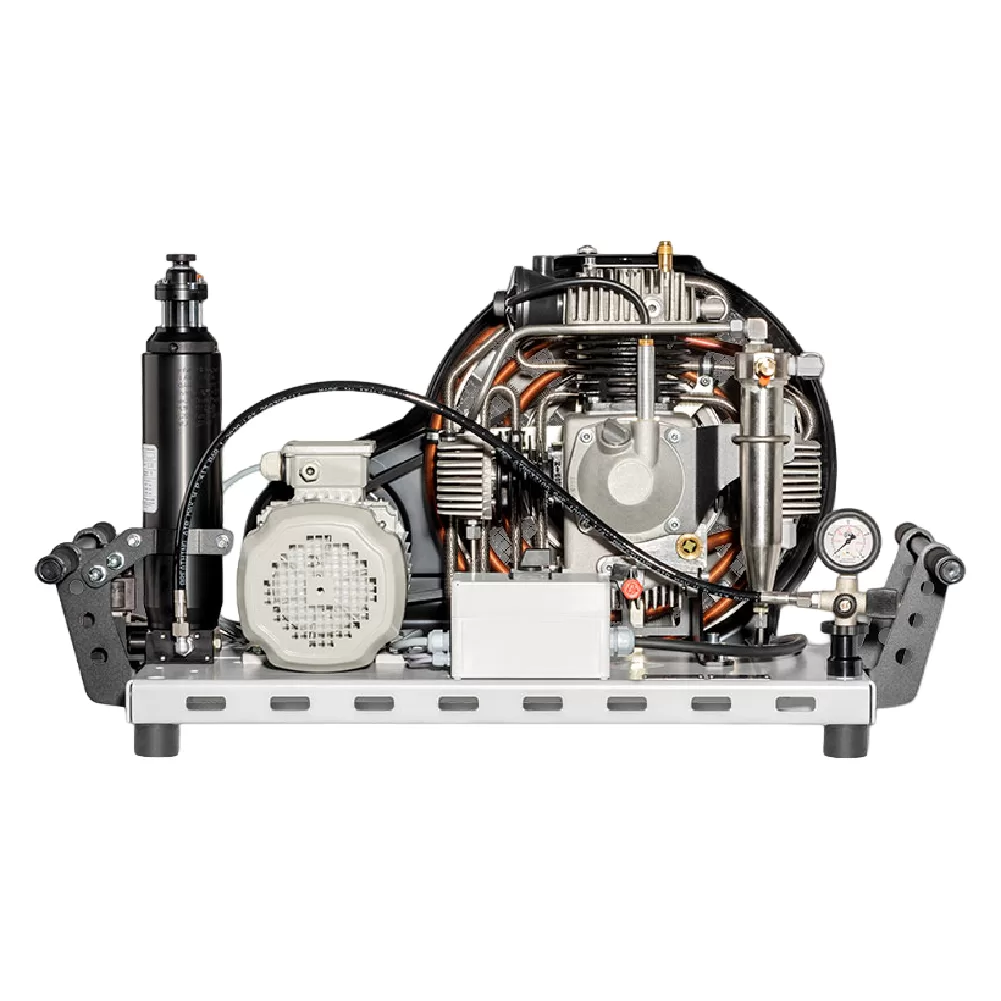

LW 250 E MC Breathing Apparatus Compressor
