Tilelink – Rafter Mounted Roof Anchor For Tile Roof

An anchor point designed for use on timber rafters with tiled roof, will arrest from any direction. Enquire about our TileLink steel rafter option.

Mã sản phẩm:
TILEL001+SCREWS
Thương hiệu:
SafetyLink
Danh mục:
Điểm Neo Trên Mái
Share:
Yêu cầu báo giá

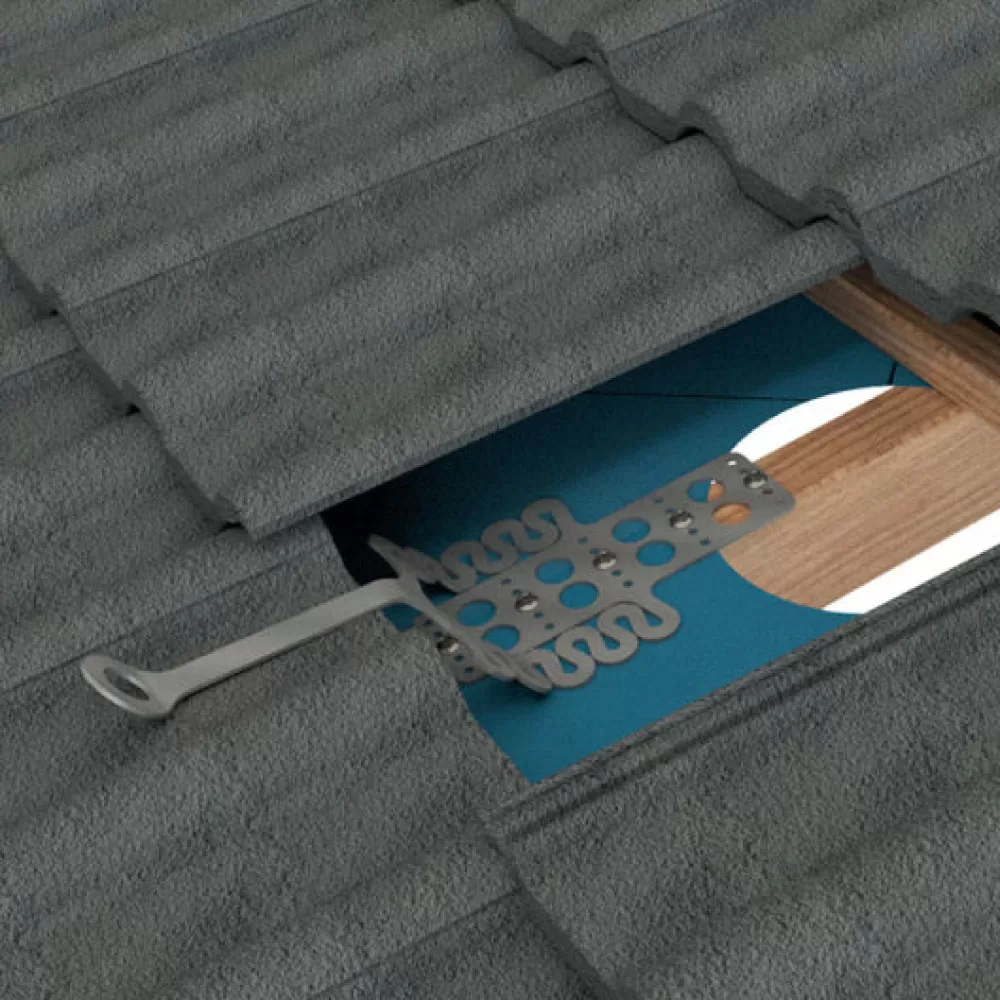

  • Designed for use on timber rafters under tile roof.
  • Highly flexible design ensures installation to the majority of roof tile profiles.
  • Affords flexible means of attachment to timber.
  • No need to cut sarking, eliminating waterproofing issues.
  • Discreet design, with only the eyelet protruding from the roof.
  • Multi-directional fall protection.
  • Single person roof anchor.
  • Rated at 15kN.
Product Code Description Weight Rated Material
TILEL001 Rafter Mounted Anchor 0.634 kg 15kN 316 Stainless Stee
TILEL001+Screws Rafter Mounted Anchor + 5 Tek Screws 0.679 kg 15kN 316 Stainless Stee
Standards: Complies with: AS/NZS 1891.4
and EN 795:2012
